Product Description:

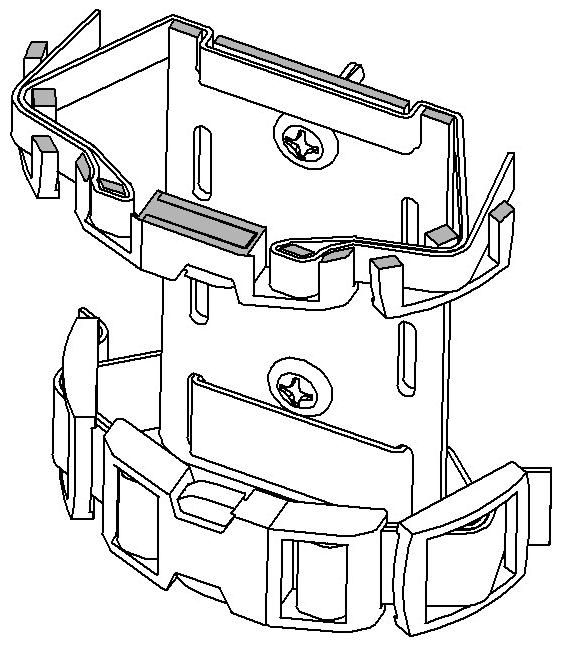

The Booster Seat Buddy is a new product that helps keep your booster seat kids safe on the way.  The Booster Seat Buddy is primarily a booster seat attachment that suspends and encloses the flexible female seatbelt buckle; to facilitate the positive engagement of the seatbelt buckle.

Attach the Booster Seat Buddy to your Booster Seat and your booster seat kids will automatically buckle up themselves as soon as they get in the car.

This attachment configuration is provided as a retrofit for the millions of booster seats that lack the many benefits of this invention.

Product Assembly:

Here is the Belt Threading Diagram

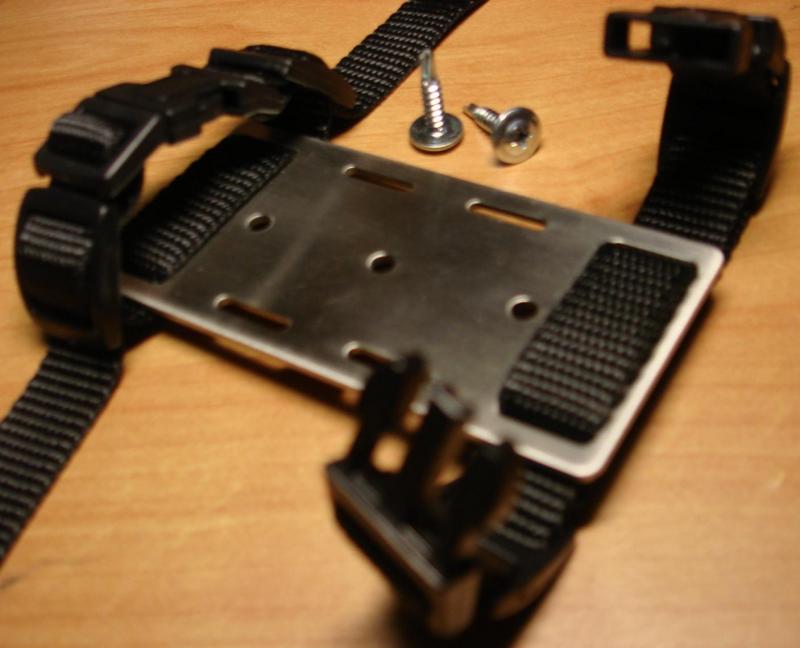

Two drill point screws are used to install the Booster Seat Buddy attachment.   The Booster Seat Buddy is totally adjustable to accept all seatbelt sizes.

Note:  It is better to Buy a booster seat with vertical side walls!

The Booster Seat Buddy is not required to be mounted completely vertical.  It can be mounted to ANY booster seat; contact us for help!

Product Installation:

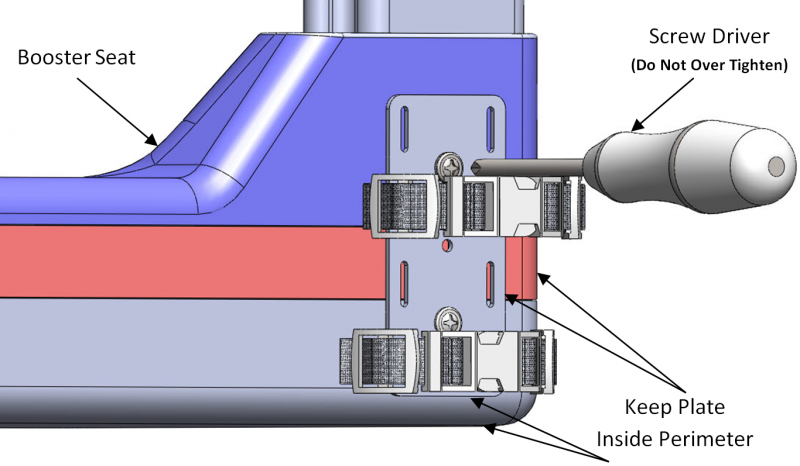

The #8 self-drilling screws were selected for their ability to pierce all booster seat materials including sheet metals.  The installation of these self-drilling screws does not require drilling any holes, since it is capable of creating its own.  Caution: Do not over tighten screws.

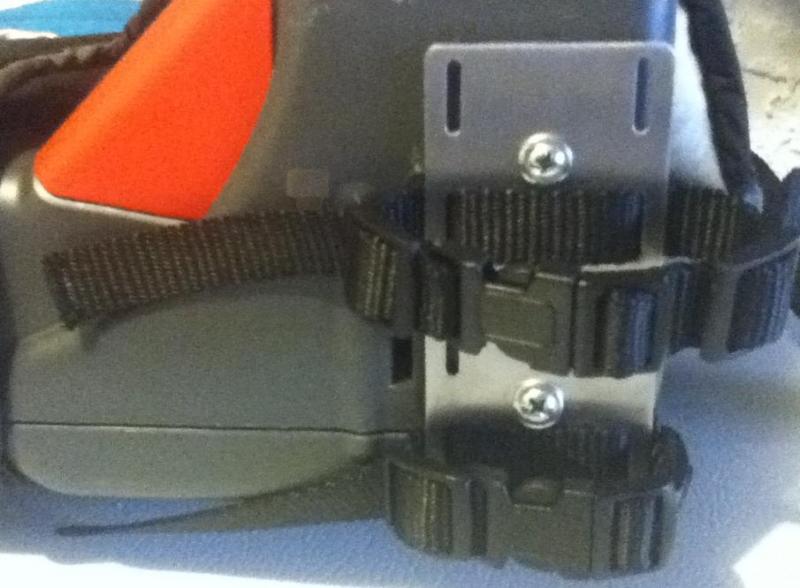

Use the top slots for taller seatbelt buckles and the lower slots for shorter seatbelt buckles.  For proper fit, tighten the lower belting as tight as possible.

Installation of the Booster Seat Buddy is a one time setup, after that, removal and installation of the booster seat is as easy as buckling and un-buckling the quick release buckle. This allows for easy movement from one vehicle to another without the need for tools.

Did You Know?

Once children out grow their forward facing child safety seats around the age of 4 years old or 40 pounds, by law, they should always travel in booster seats.  The 2011 recommendation requires the use of a booster seat up to 4 feet 9 inches tall or 8 to 12 years old.  In addition, to these booster seat requirements the recommendation also state that children should ride in the back seat until the age of 13 year old.

It is easier to monitor your child if you install the car seat or booster seat across from you in the rear seat; than if your child is seated directly behind you.

The single most important thing your child can do to be safe for traveling is Buckle Up!
